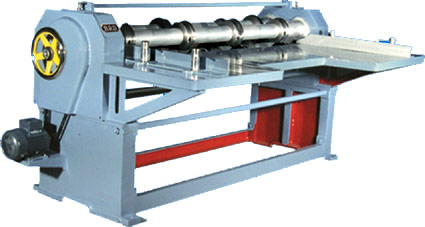

FOUR BAR ROTARY
CREASING & CUTTING MACHINE.
The
machine is used for cutting & creasing of corrugated boards simultaneously. The
machine is sturdy and contains graded alloy steel knives for smooth cutting.
Gauges are provided for accurate cutting & creasing of sheets as per required
measurement.
|
Technical Specifications: |
| Machine Size |
65" |
75" |
85" |
95" |
105" |
| Motor Required (H.P) |
1.5 |
2 |
2 |
2 |
2 |
| Floor Space |
55"x85" |
55"x100" |
55"x110" |
55"x120" |
55"x130" |
| Machine Height |
48" |
48" |
48" |
48" |
48" |
| Gross Weight (Kgs) |
2200 |
2600 |
2800 |
3000 |
3200 |
| Production Capacity |
5000 |
5000 |
5000 |
5000 |
5000 |
|
