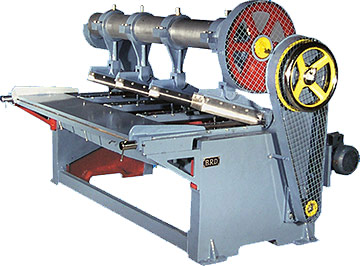

ECCENTRIC SLOTTER
MACHINE
The
machine is used for slotting & corner cutting of the corrugated board
simultaneously. The machine has three slotting & one corner cutting head.
Gauges are provided for accurate feeding.
|
Technical Specifications: |
| Machine Size |
65" |
75" |
85" |
95" |
105" |
| Minimum space between slots |
4" |
5" |
5" |
5" |
5" |
| Maximum slot depth |
12" |
18" |
18" |
18" |
18" |
| Power Required (H.P) |
2 |
3 |
3 |
3 |
5 |
| Floor Space |
55"x90" |
58"x100" |
58"x110" |
58"x120" |
58"x130" |
| Machine Height |
58" |
62" |
62" |
62" |
62" |
| Gross Weight (Kgs) |
2200 |
2800 |
3000 |
3200 |
3400 |
| Production Capacity (stroke per minute) |
30 |
30 |
30 |
30 |
30 |
|
