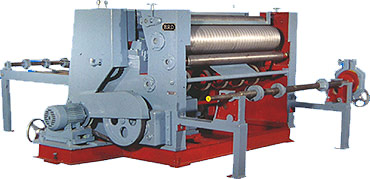

ROTARY REEL TO
SHEET CUTTER MACHINE
The
machine is designed for high production in cutting paper as well as 2 ply
corrugated sheet without damaging the flutes. This machine can be used as an
Independent unit or can be attached to a corrugation machine for direct and
accurate sheet cutting, which minimises the percentage of wastage. PIV gear box
is provided for cutting of the sheet to the required length. A delivery
conveyer is provided to carry the sheets out. Variable speed motor is
recommended for economy in wastage at an additional cast.
|
Technical Specifications: |
| Machine Size |
45" |
52" |
56" |
62" |
72" |
| Motor Required (H.P) |
3 |
3 |
3 |
3 |
3 |
| Floor Space |
82"x120" |
90"x120" |
95"x120" |
100"x120" |
110"x130" |
| Machine Height |
48" |
48" |
48" |
48" |
48" |
| Gross Weight (Kgs) |
1600 |
1800 |
1900 |
2000 |
2200 |
| Production Capacity /min (Min/Max) |
20/60 |
20/60 |
20/60 |
20/60 |
20/60 |
| Cutting Length (Min/Max) |
20"/80" |
20"/80" |
20"/80" |
20"/80" |
20"/80" |
|
