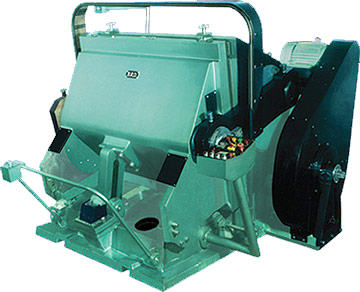

PLATEN DIE
CUTTING, CREASING & EMBOSSING MACHINE
The Heavy
Duty Platen punching and embossing machine is utilised for
cutting, creasing, embossing and punching of corrugated
sheets. The drive and stop to the platen is transfered by an
electromagnetic clutch. Two safety guides are provided for
instant stoping of the machine in emergency.
|
Technical Specifications: |
| Machine Size |
Platen
Size |
Impression Per/ Hour |
Motor
H.P. Required |
Floor
Space |
Gross
Weight |
|
20"x26" |
23"x29" |
2000 |
3 H.P. |
60"x45" |
2.7
MT. |
|
20"x30" |
23"x33" |
2000 |
3 H.P. |
60"x51" |
3.0
MT. |
|
22"x32" |
25"x35" |
1800 |
5 H.P. |
62"x53" |
3.5
MT. |
|
25"x37" |
28"x40" |
1800 |
5 H.P. |
65"x55" |
4 MT. |
|
32"x42" |
36"x46" |
1500 |
7.5
H.P. |
70"x68" |
5.5
MT. |
|
36"x50" |
40"x54" |
1200 |
7.5
H.P. |
77"x75" |
7.5
MT. |
|
45"x65" |
49"x69" |
1000 |
10 H.P. |
86"x92" |
10.5
MT. |
|
